Re: Your Creation's Before & After Pics

Post by Marc S. » May 08 2019 3:53pm

Jil wrote:
May 08 2019 3:19pm
6Wh/km @ 60 kph !! Cx is everything...
On open roads without frequent traffic lights, I think its closer to 5.8 or 5.9Wh/km and it currently got a relatively slowish tire at the rear wheel (Big Ben 50-559). I have to do some further testing, but with some light pedaling (75W), 3.3Wh/km @ 40km/h, 4.5Wh/km @ 50km/h and 6Wh/km @ 60km/h isn't far from the truth. If the road goes ever so slightly downhill, it gets even more ridiculous.
Jil wrote:
May 08 2019 3:19pm
What is its weight ?
About 38.5kg without battery, but with hood. I can fit three, used, 20s battery packs behind the seat, that together have roughly 2kWh capacity left and weight 5kg each. With tool bag, big Abus U-Lock, water bottles, two Radical velomobile bags with some stuff, it should weight close to 60kg. With one battery and about 120km battery range, close to 50kg.
Its an old, glass fiber, Mk2 version that should have weighted about 32.5kg (I forgot to put it on a scale before tearing it apart). The current, carbon fiber, Mk4 version weights 25kg.
Last edited by Marc S. on Sep 16 2019 2:14pm, edited 1 time in total.

darryl64   1 mW

1 mW
Posts: 18
Joined: Oct 30 2014 7:01am
Location: brisbane,australia
Contact:

Re: Your Creation's Before & After Pics

Post by darryl64 » May 13 2019 12:30am

first two bikes

Jil   100 W

100 W
Posts: 132
Joined: Sep 07 2017 3:24pm
Location: Bordeaux, France

Re: Your Creation's Before & After Pics

Post by Jil » May 13 2019 4:34pm

Thanks Marc. Impressive bike !
My bike : Surly "eKrampus" with GMAC 8T, Phaserunner and 20 Ah/52 V Li-ion battery.

User avatar
Wolfeman   100 W

100 W
Posts: 259
Joined: May 13 2014 12:09pm
Location: West Coast USA

Re: Your Creation's Before & After Pics

Post by Wolfeman » May 23 2019 2:00pm

Before....
After.....
Trek 4300 w/ H3580 Crystalyte at 3600W
viewtopic.php?f=3&t=82738
Worksman Mover M2020-3CB w/DD 750W front hub
viewtopic.php?f=3&t=96873
Dyno Moto 7 BMX Cruiser w/BBS02
viewtopic.php?f=6&p=1467001#p1467001
GT Palomar Vintage hardtail w/BBS02
viewtopic.php?f=6&t=104255

Monkeypowah   10 mW

10 mW
Posts: 27
Joined: Nov 22 2017 5:04pm

Re: Your Creation's Before & After Pics

Post by Monkeypowah » Jun 01 2019 10:08am

Bought the bike for £400.
Fitted the rear geared hub wheel off my broken frame bike, running back pack battery.
Its a ten year old DH bike ,Commencal Superteam.
Fitted controller and backup on frame 5ah 48v battery



User avatar
amberwolf   100 GW

100 GW
Posts: 28617
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Your Creation's Before & After Pics

Post by amberwolf » Jun 01 2019 11:17pm

The fatbike fork was badly made of soft metal.
Before riding on it
After riding on it for a couple weeks(?)
Presumably the braking forces (even though I never braked hard during any of the commuting) slowly bent it backwards...and the motor isn't hooked up to anything yet.

So I used some clamps Chalo sent and built a tripleclamp fork out of old bike frame tubing, and the lowers off a crappy "suspension" fork, minus all the internals. It works way better, though it only has a regular bike wheel in it, as the clamps are only normal fork width, and I haven't built the modules to offset the dropouts from the fork legs enough for the rear hubmotor to fit in it.

https://endless-sphere.com/forums/viewt ... 5#p1467045



User avatar
thundercamel   1 kW

1 kW
Posts: 324
Joined: Jul 23 2018 2:58pm
Location: Round Lake, Illinois

Re: Your Creation's Before & After Pics

Post by thundercamel » Jun 06 2019 4:23pm

Pictures can be opened as a new tab for full resolution.
Both bikes before:

My wife's StefEbike v1:

v1.5:

v2:

My bike:

and I later tucked the motor controller in the bag as well, and got new tires:
My Ebike builds - Existing bikes, affordable motor kits, self built 14s6p batteries - Now with more recumbent!

User avatar
dequinox   10 kW

10 kW
Posts: 859
Joined: Oct 31 2009 1:43pm
Location: Eugene, OR

Re: Your Creation's Before & After Pics

Post by dequinox » Jun 10 2019 12:16pm

Ooh i like that, nice and simple, and clean looking!
Wolfeman wrote:
May 23 2019 2:00pm
Before....

After.....
On a dusty pew in a vestibule sits the Devil playing pocket pool, he's waiting for the next poor fool who forgot that it was Sunday

STABLE:
HI-V (Retired); Sun Cruiser w/ Hill Topper Kit; Giant Simple Cruiser w/ Amazon 1000W Front Hub.
Parts donated by Rassy and Greenerwheels have made many of my builds possible, THANK YOU!!!

User avatar
ProStock   100 µW

100 µW
Posts: 9
Joined: Aug 06 2016 11:36pm

Re: Your Creation's Before & After Pics

Post by ProStock » Jun 11 2019 5:52pm

This is my commute bike that i built in 2014 still running strong today after 12.000 km
Specs:
Leaf Motor 1500W
powervelocity 4Kw Sinewave BT controller
Cycle Analyst v3
Batt 58.8V Panasonic PF18650 14/S 8/P
KHZ 5000 Carbon fiber front fork Component SRAM & RaceFace

Attachments

morganw   1 mW

1 mW
Posts: 13
Joined: Jun 13 2008 11:09am

Re: Your Creation's Before & After Pics

Post by morganw » Jun 24 2019 2:19am

2004 Santa Cruz Blur from Craigslist with Grin GMAC 10T kit w/ 52V 16.5A Hailong battery, Phaserunner & Sempu torque sensing bottom bracket.

Was going to buy a BikesDirect HAL5, one of the last full suspension bikes without thru axles in the back, but an e-s'er convinced me to keep checking Craigslist. This bike has a a non-tapered head tube, 68mm bottom bracket and quick release front & rear. 160mm rotors & 180mm is the max with I.S. tabs, but I think it needs bleeding and new pads more than bigger rotors.

Wasn't sure about chainline & BB spindle length, so bought a 115mm Shimano to try before ordering the Sempu. Didn't realize front derailleur was set up for 47.5mm chainline with original Hollowtech II/Octalink crankset. FSA Dyna Drive puts chainwheels at about 50mm, so since I can't get a torque BB in 110mm, I installed a Problem Solvers direct mount adapter made for Boost which is 3mm further outboard than their regular adapter (29mm vs 26).

Put 100 miles on it so far. If Sempu keeps giving me trouble, I'm going to try powering it directly from the battery. If that fails, I'll try a TDCM.

Suspension was set up for a 175 lb. person. I'm 230, but I set it up with 200 psi rear & 100 front so I get a little more sag & plushiness at the expense of bottoming out on big hits, but I'm riding on roads not trails, so I think I'll be OK.


User avatar
Wolfeman   100 W

100 W
Posts: 259
Joined: May 13 2014 12:09pm
Location: West Coast USA

Re: Your Creation's Before & After Pics

Post by Wolfeman » Jun 24 2019 9:29pm

Very cool Morganw. Nice build.
Trek 4300 w/ H3580 Crystalyte at 3600W
viewtopic.php?f=3&t=82738
Worksman Mover M2020-3CB w/DD 750W front hub
viewtopic.php?f=3&t=96873
Dyno Moto 7 BMX Cruiser w/BBS02
viewtopic.php?f=6&p=1467001#p1467001
GT Palomar Vintage hardtail w/BBS02
viewtopic.php?f=6&t=104255

docw009   100 kW

100 kW
Posts: 1197
Joined: Aug 02 2015 7:43am
Location: Chicago area suburbs.

Re: Your Creation's Before & After Pics

Post by docw009 » Jun 24 2019 10:56pm

This is a cheapo ebike converted to hopefully a nicer ebike. Started as an impulse buy of a 20" folding fatbike on amazon for $679. It was supposed to be a white one, so I got a $75 rebate rather than force the seller to ship a new one.
It's a 500W motor with 36V battery. 810LED display with 3 level PAS. I own a 26" fatbike, and expected this to be tiny, but the wheels were almost 24" in diameter. That's too big and the bike really isn't meant for off road at 60+ pounds.

Smaller tires for $80. Paint. Swapped in an air suspension fork for $120.
It was intended for my wife, who won't ride it. Says it looks like something the Gestapo would ride. I don't like it that much either, because it's 60+ pounds. I can feel it with pedal assist. My 26" fatbike weighs less.

Maybe I should put a POLIZEI plaque on the front fender. I do plan to change out the controller. Put in a PSWpower sinewave model to give a better feel for pedal assist.

User avatar
rootshell   100 mW

100 mW
Posts: 49
Joined: May 26 2019 1:23pm
Location: Bay Area, CA

Re: Your Creation's Before & After Pics

Post by rootshell » Jun 28 2019 8:55pm

Below are the B&A pics of my project.

Grabbed an old 90's Schwinn, stripped it down and built it back up.

Total project cost was a little over $800.

1000W rear hub with EM3ev 52V (14S4P) Super Shark Ebike Battery.

Progress thread here:
viewtopic.php?f=3&t=100409&start=100
Attachments

User avatar
Chopcat   1 mW

1 mW
Posts: 16
Joined: Apr 29 2019 1:51am

Re: Your Creation's Before & After Pics

Post by Chopcat » Jul 02 2019 1:34am

Wolfeman wrote:
Jun 24 2019 9:29pm
Very cool Morganw. Nice build.
Nice one.
I found that having access to the higher gears was not necessary on my build once you have power assisting you.
viewtopic.php?f=6&t=100917.
In fact i lost the front gear selector and only use the bigger chainring. So the bottom bracket issue might not such a problem.

morganw   1 mW

1 mW
Posts: 13
Joined: Jun 13 2008 11:09am

Re: Your Creation's Before & After Pics

Post by morganw » Jul 02 2019 1:27pm

Chopcat wrote:
Jul 02 2019 1:34am
I found that having access to the higher gears was not necessary on my build once you have power assisting you.
I only need high-ish gears. With my 6'3" sitting upright in the wind, I need to add 100-200W to the motor's 750 to get from 20 & a bit MPH up above 25MPH. For helping the motor starting from a stop on a flat, the big ring with the next-to-lowest or next in the back (cross-chaining, yes) is good. I could go 1x, but I wanted to stick to the spirit of "fully operable pedals" by keeping the full 3x9 drivetrain working. I live in a flat area, but if the assist fails, it'll be nice to have the middle ring for limping home.

In your build thread, you mentioned that you needed to set your Sempu backwards from the CA default. I do get negative power readings sometimes, but also forward sometimes. I thought it might be the issue of the CA's 10V regulator hitting a current limit with high drain accessories with high battery voltage (I have 14s Li-Ion), but it sounds like that causes the CA to brown out & drop the 5V rail until the CPU crashes. If that's the case, switching the Sempu from 10V to direct from the battery wouldn't help any.

User avatar
Chopcat   1 mW

1 mW
Posts: 16
Joined: Apr 29 2019 1:51am

Re: Your Creation's Before & After Pics

Post by Chopcat » Jul 03 2019 1:36am

Out of interest would adding an annalogger be the way to look at all the signals to diagnose the issue. I find mine varies the output when pedalling at a constant speed and effort. You can be going along at 300W and then suddenly up to 900W and then back again and i cant quite diagnose what the cause might be.

morganw   1 mW

1 mW
Posts: 13
Joined: Jun 13 2008 11:09am

Re: Your Creation's Before & After Pics

Post by morganw » Jul 06 2019 1:37pm

Chopcat wrote:
Jul 03 2019 1:36am
Out of interest would adding an annalogger be the way to look at all the signals to diagnose the issue. I find mine varies the output when pedalling at a constant speed and effort. You can be going along at 300W and then suddenly up to 900W and then back again and i cant quite diagnose what the cause might be.
I have an Analogger & I'm not seeing anything helpful. It only logs human power and RPM, not raw voltage from the torque sensor or computed Nm torque. Here's a trip where I only pedaled for a hill & getting away from stops. The hill is from 0.711 to 1.152 km. Edit: the Analogger has two extra analog inputs that can be logged, so if we didn't already know some Sempus are faulty (see below), this would be a way to see the voltage dropping to zero or spiking high.

One thing about the Sempu is that it measures all strain on the spindle, not torque applied to the chain, so standing while pedaling or mashing jerkily can show some weird numbers. It's also quite noisy and the no-torque value seems to drift around, so sometimes it's over 1.6V after I re-set the zero at say 1.52V and just spinning with no force will give me nearly 100W.

Edit: Justin posted that there was a bad batch of Sempus & they're trying to get replacements to send out.

SOLO 12   1 µW

1 µW
Posts: 4
Joined: Aug 07 2019 8:08am

Re: Your Creation's Before & After Pics

Post by SOLO 12 » Aug 08 2019 3:25am

Schwinn Stingray Spoiler

battery:2.88kw\h (60V, 48Ah), LG Chim.
Мotor - DD 3kw
controller: up to 8kw - http://wiki.nucular.tech/ru:start
Attachments
Last edited by SOLO 12 on Aug 08 2019 3:50am, edited 2 times in total.

SOLO 12   1 µW

1 µW
Posts: 4
Joined: Aug 07 2019 8:08am

Re: Your Creation's Before & After Pics

Post by SOLO 12 » Aug 08 2019 3:32am

in General, it turned out a powerful device
Last edited by SOLO 12 on Aug 08 2019 3:44am, edited 2 times in total.

User avatar
amberwolf   100 GW

100 GW
Posts: 28617
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Your Creation's Before & After Pics

Post by amberwolf » Aug 08 2019 3:39am

SOLO 12 wrote:
Aug 08 2019 3:32am
Начало
What?

Sorry, but there's almost no one here that can read cyrillic. Almost everyone here can at least read English, so I would recommend translating whatever you post into English if you want them to know what you're saying.

SOLO 12   1 µW

1 µW
Posts: 4
Joined: Aug 07 2019 8:08am

Re: Your Creation's Before & After Pics

Post by SOLO 12 » Aug 08 2019 3:52am

amberwolf wrote:
Aug 08 2019 3:39am
SOLO 12 wrote:
Aug 08 2019 3:32am
Начало
What?

Sorry, but there's almost no one here that can read cyrillic. Almost everyone here can at least read English, so I would recommend translating whatever you post into English if you want them to know what you're saying.
ок

mike425   1 mW

1 mW
Posts: 15
Joined: Jan 22 2019 1:40pm

Re: Your Creation's Before & After Pics

Post by mike425 » Aug 09 2019 10:08am

My Bafang Ultra commuter bike, started with an old frame and modified it. The full build is really rough but the bike hasn't skipped a beat..

KalistoBG   100 µW

100 µW
Posts: 7
Joined: Nov 14 2016 9:23am

Re: Your Creation's Before & After Pics

Post by KalistoBG » Aug 16 2019 12:38pm

some pic of my last build

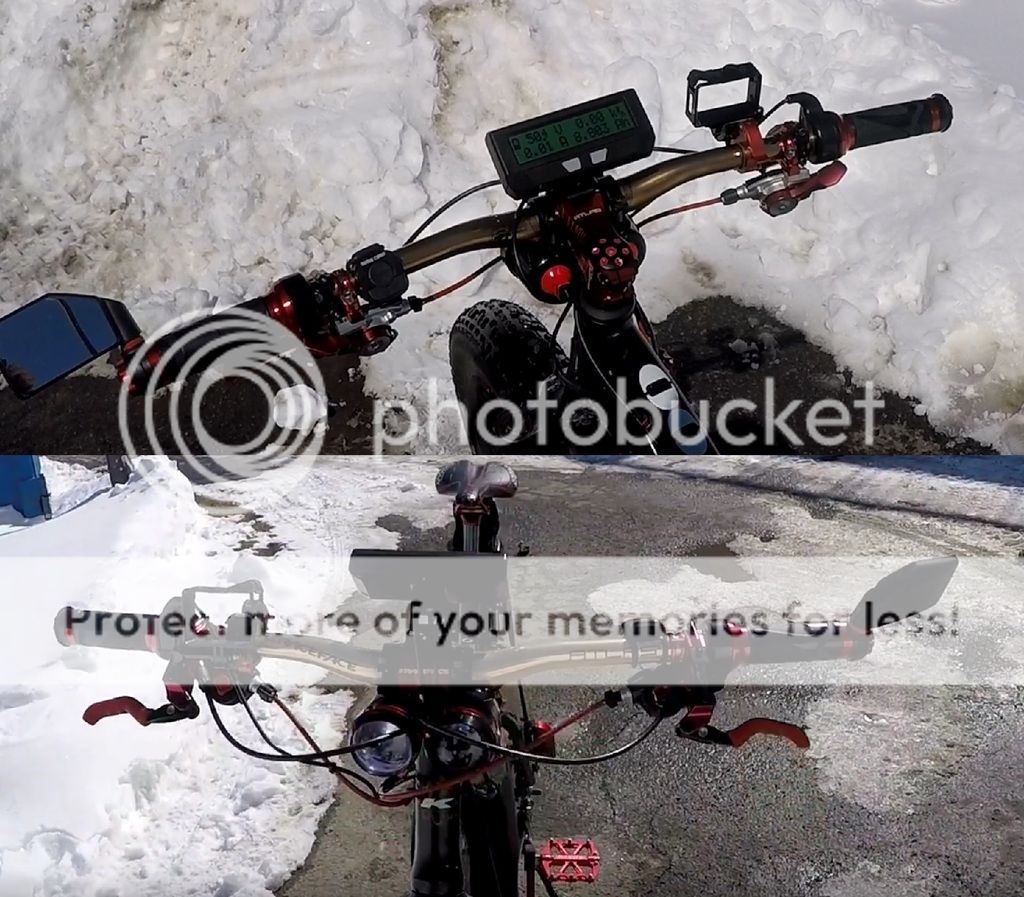

former Fatbike 26"
controller 48-72v 50amp moded to be near 28amp

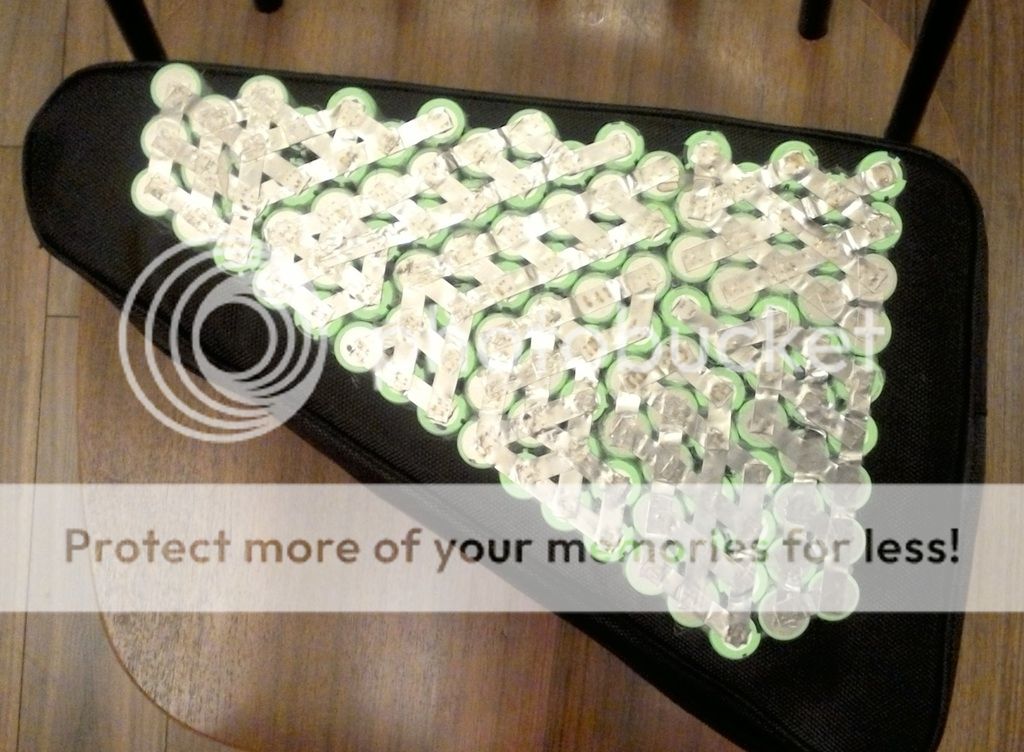

batt. in backpack bag 22.5amp 54.6v 13s 3p it looks scarry but i havent been arrested..... YET :lol:
hub motor 2kw 2x the phase leads inside the motor removed sensor wires for space in the cable channel
did try cables for delta nice speed slow /weak/ start ,nice for small dia. tires ,not good for now
motor tires 16" ~130/70
50km\h on flat road

greetings from Bulgaria /EU/ :D
Attachments

redmouse   1 W

1 W
Posts: 51
Joined: Aug 03 2017 7:16pm

Re: Your Creation's Before & After Pics

Post by redmouse » Aug 17 2019 1:48am

KalistoBG wrote:
Aug 16 2019 12:38pm
some pic of my last build
I like it! Regular frame and small wheels looking good!
That rear wheel is gangsta af :) Does it stay true? Any plans to do proper spokes? Where is a good source for custom spokes?

KalistoBG   100 µW

100 µW
Posts: 7
Joined: Nov 14 2016 9:23am

Re: Your Creation's Before & After Pics

Post by KalistoBG » Aug 17 2019 2:51am

i did the spokes just for test but i managed to make it kind of true sooo temporary solution is the best solution ... if works dont touch it :lol:
original spokes for hub motor are super expensive and diff to find proper lenght thats why normaly i make my own spokes
normaly i use bike spokes and cut them to size and make a knot over the spokes where the end of the spoke must be over the hub motor hole and its working fine you cant torn the spoke verry easy =]

i welded the hub motor on 2 sides with metal pieces and tight them to the frame and that is to stop the motor from spin inside the dropout of the frame the nuts are pushing inside out to the frame
the back of the frame was to wide for this hub motor
