Crystalyte X5 axle, who wants one?

General Discussion about electric bicycles.
Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Crystalyte X5 axle, who wants one?

Post by Tench » Jan 29 2014 2:51pm

We have a UK ES member who is in need of a new spindle for his X5, if I took this on for him it would be wise to make a batch of them, but how many? I don't want to be stuck with a shed full or leave someone without that has a need.
So if you want an X5 spindle or a few let me know. When we know how many we can get a price put on the job.

Simon.

Sorry if this post is in the wrong place.
Last edited by Tench on Feb 13 2014 5:38pm, edited 1 time in total.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
steveo   1 MW

1 MW
Posts: 1774
Joined: Oct 06 2007 3:07pm
Location: Woodbridge, Ontario

Re: Crystalyte X5 spindles, who wants one?

Post by steveo » Jan 29 2014 5:38pm

i'm not sure what you mean by spindle .. but i'm guessing you mean axle...

is this the new generation x5 or old gen x5?

front or rear axle?

you may wana specify price too!

-steveo
Repair Thread
http://endless-sphere.com/forums/viewto ... =3&t=27170
Hub Monster bike ~ 24s7p A123 15.4ah/18kv Six Phase Motor/Dual Max-E Adapttos/32kw~42.91Hp/Est 140LBS
X6 Kmx Trike ~ 24s4p 20ah/X6 MHM 602/Infinion EB324 IRFB 4110/20Kw~26.82Hp/Est 120LBS ~SOLD~
Lightening rods bike ~ 18s2p 10ah/1500w Inrunner/Infinion EB312 IRFB4110/2KW~2.68hp/Est 60LBS
EV Outboard ~ 12s8p 40ah/5KW GM Inrunner/Infinion EB324 IRFB 4110/18Hp Evinrude Drive/Est 100lbs
http://www.youtube.com/user/trdfreak03

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 spindles, who wants one?

Post by Tench » Jan 29 2014 5:52pm

I think the one I need to make is the new generation rear X5 motor, I will know more when it arrives in a day or 2.
I cant put a price on them yet but they will not be expensive, the cost will depend on how many we run off while the cnc is set up.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
Allex   1 GW

1 GW
Posts: 3257
Joined: Dec 05 2011 8:46am
Location: Stockholm, Sweden

Re: Crystalyte X5 spindles, who wants one?

Post by Allex » Jan 31 2014 5:21am

Good idea to advertise on Stealth topic. A bunch of guys who have 5403 there :)

User avatar
Kent   1 kW

1 kW
Posts: 382
Joined: Jun 04 2011 3:14pm
Location: Vermont, USA

Re: Crystalyte X5 spindles, who wants one?

Post by Kent » Jan 31 2014 6:25am

Tench wrote:We have a UK ES member who is in need of a new spindle for his X5, if I took this on for him it would be wise to make a batch of them, but how many? I don't want to be stuck with a shed full or leave someone without that has a need.
So if you want an X5 spindle or a few let me know. When we know how many we can get a price put on the job.

Simon.

Sorry if this post is in the wrong place.
So in light of all the broken axles (spindles?) as of late, you are going to spec a better quality steel fully heat treated and hardened?
72 V, (2x36v, 11.5 ah in series) Cellman, HS3540, 18fet Lyen, Jamis Dirtjumper Hardtail. Its streetlegal w license plate, inspection sticker.

Only by setting an example of good road manners and public courtesy can we convince the general public to take the electric bike seriously as a transportation option. Obey traffic laws!

My build: http://endless-sphere.com/forums/viewto ... =6&t=45706
Going legal: http://endless-sphere.com/forums/viewto ... =3&t=49390

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 spindles, who wants one?

Post by Tench » Jan 31 2014 6:47am

I am going to take advise on this, it will certainly be a much better quality steel than is used for the std one but I don't think hardened is the way to go, just very good quality, something like EN24T.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
efMX Trials Electric Freeride   1 MW

1 MW
Posts: 1687
Joined: Feb 15 2013 4:43pm

Re: Crystalyte X5 spindles, who wants one?

Post by efMX Trials Electric Freeride » Jan 31 2014 12:30pm

Allex wrote:Good idea to advertise on Stealth topic. A bunch of guys who have 5403 there :)
doesnt stealth upgrade from the stock axles etc during assembly???
or spec a higher quality??
havent heard of any stealth owners w broken axles yet??
after all stealth wouldnt want a bunch of warranty problems..
if the axle broke on a $10K+ ebike i would be more the pissed!
i could be wrong though.. :?:
some ride & sk8 videos:
metacafe.com/channels/NATAS666DAMIEN
http://www.youtube.com/natas666damien
i have nothing for sale.. :)

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 spindles, who wants one?

Post by Tench » Jan 31 2014 12:55pm

The axle is strong enough when mounted correctly, the Stealth torque arm design will be responcible for their good axle reliability record. The Stealth I had did not appear to have an Axle different from any other X5.
The problems arise from pushing them further than intended and/or peoples home brewed mountings not giving enough support.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
efMX Trials Electric Freeride   1 MW

1 MW
Posts: 1687
Joined: Feb 15 2013 4:43pm

Re: Crystalyte X5 spindles, who wants one?

Post by efMX Trials Electric Freeride » Jan 31 2014 1:24pm

Tench wrote:The axle is strong enough when mounted correctly, the Stealth torque arm design will be responcible for their good axle reliability record. The Stealth I had did not appear to have an Axle different from any other X5.
The problems arise from pushing them further than intended and/or peoples home brewed mountings not giving enough support.
thanks for that ;)
but what about axle strength for big drops/jumps/hits
as opposed to twisting or torque load???
any problems there???
rix, dhpaulie & some others are riding their stealth hard offroad
magnet slip & rim damage seems to be the problems there???
some ride & sk8 videos:
metacafe.com/channels/NATAS666DAMIEN
http://www.youtube.com/natas666damien
i have nothing for sale.. :)

bigsi   10 W

10 W
Posts: 86
Joined: Jan 12 2014 5:33pm
Location: Northumberland uk.

Re: Crystalyte X5 spindles, who wants one?

Post by bigsi » Feb 02 2014 6:04pm

Hi guys this is for me. He's making a slightly larger axle with larger bearings for a 5304 mk3 it will still have the 10mm flats for ease of installation. Hopefully with a machine thread m16 nut.
Thanks si
specialized s-works enduro carbon running 18FET Lyen. crystalyte 5304v3 running 105v 15ah....
I build quick release custom batteries to any size and shape. Including custom installs.

cassschr1   10 kW

10 kW
Posts: 510
Joined: Aug 14 2009 11:57am
Location: LaCrosse, Wisconsin

Re: Crystalyte X5 spindles, who wants one?

Post by cassschr1 » Feb 02 2014 7:36pm

I wil go for one for sure, maybe 2. I own 4 of those motors. rear motors hopefully a little longer threads on both sides.
Last edited by cassschr1 on Feb 03 2014 8:50pm, edited 1 time in total.

User avatar
Kent   1 kW

1 kW
Posts: 382
Joined: Jun 04 2011 3:14pm
Location: Vermont, USA

Re: Crystalyte X5 spindles, who wants one?

Post by Kent » Feb 02 2014 8:21pm

I didn't know there was a v3. Does anyone know the difference between these (3?) versions of HS3540?
72 V, (2x36v, 11.5 ah in series) Cellman, HS3540, 18fet Lyen, Jamis Dirtjumper Hardtail. Its streetlegal w license plate, inspection sticker.

Only by setting an example of good road manners and public courtesy can we convince the general public to take the electric bike seriously as a transportation option. Obey traffic laws!

My build: http://endless-sphere.com/forums/viewto ... =6&t=45706
Going legal: http://endless-sphere.com/forums/viewto ... =3&t=49390

User avatar
alsmith   100 kW

100 kW
Posts: 1182
Joined: Dec 03 2010 7:25pm
Location: Northumberland, UK

Re: Crystalyte X5 spindles, who wants one?

Post by alsmith » Feb 02 2014 11:34pm

I would have been interested but mine is front and a 5300 :(

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 spindles, who wants one?

Post by Tench » Feb 13 2014 2:03pm

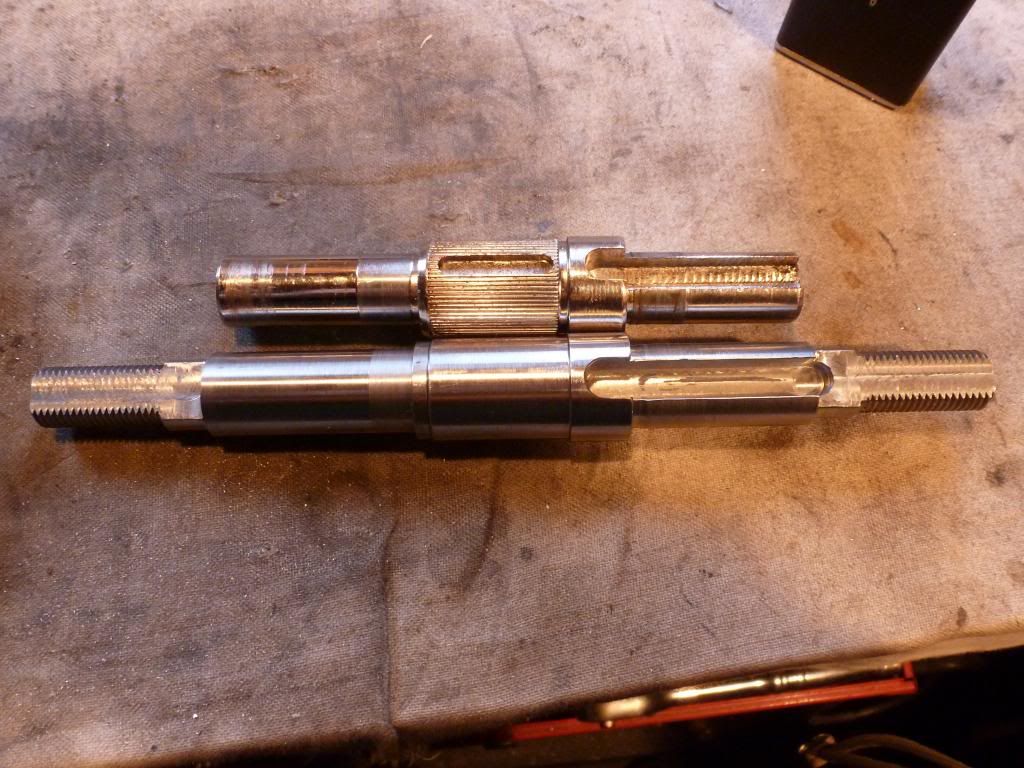

I got an axle made for BigSi on here for his X5, it is the new type motor with the pressed stator so maybe the same as the new 40xx series? it is slightly different dimensionally to the 35xx type of motor I have.

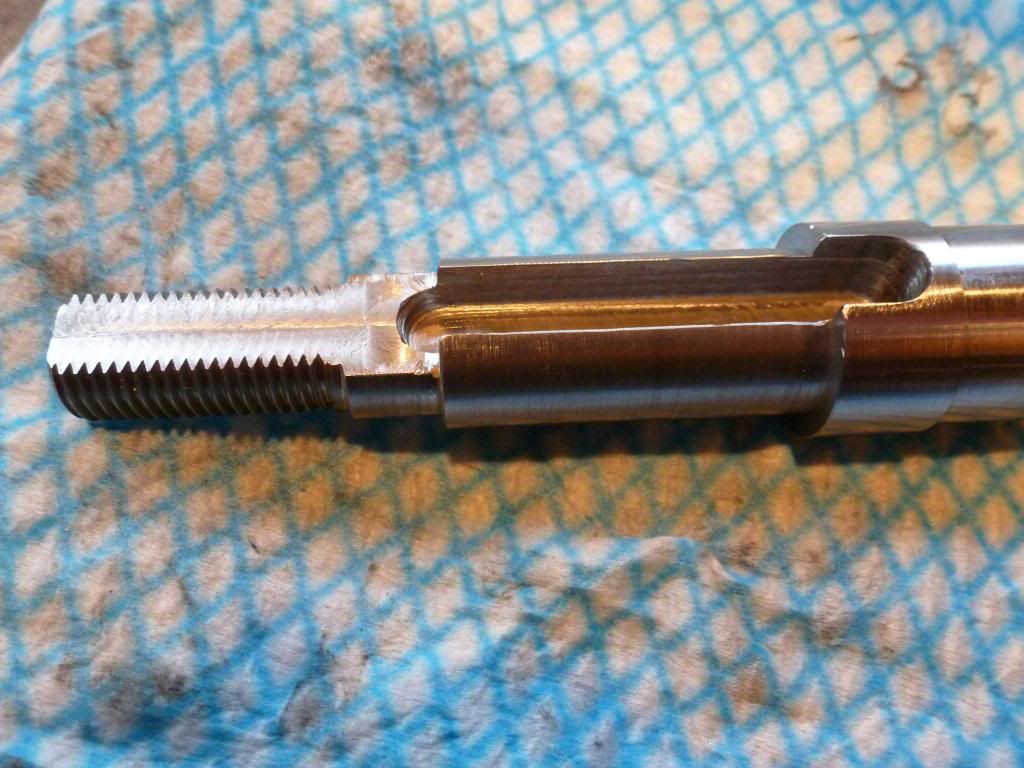

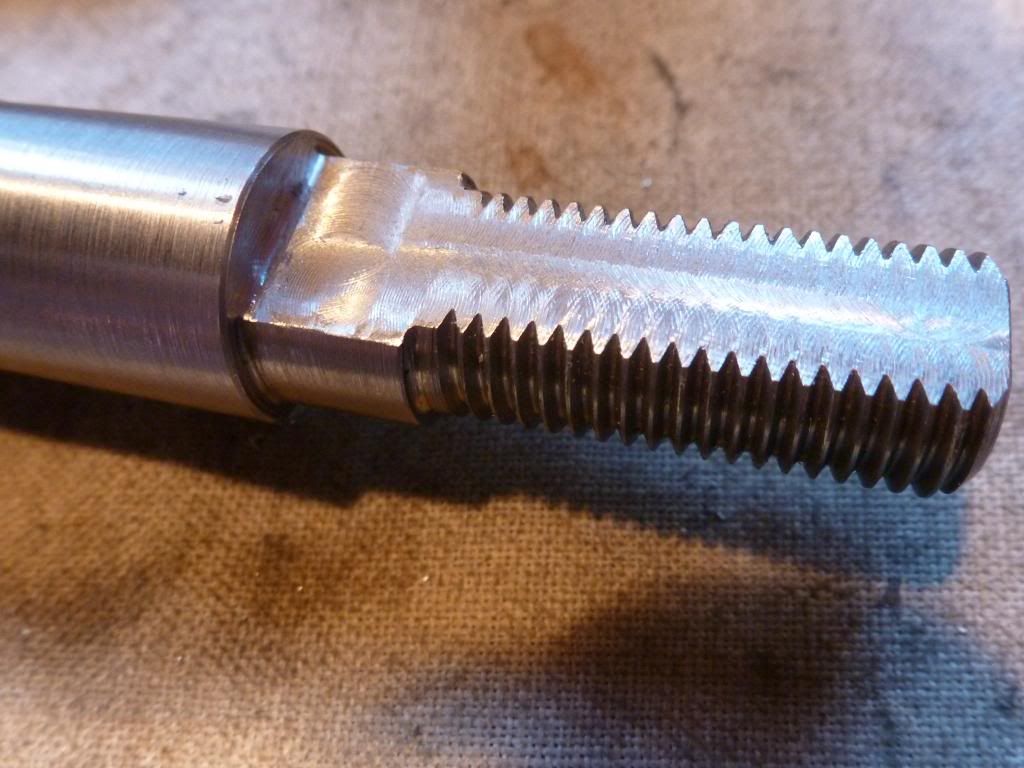

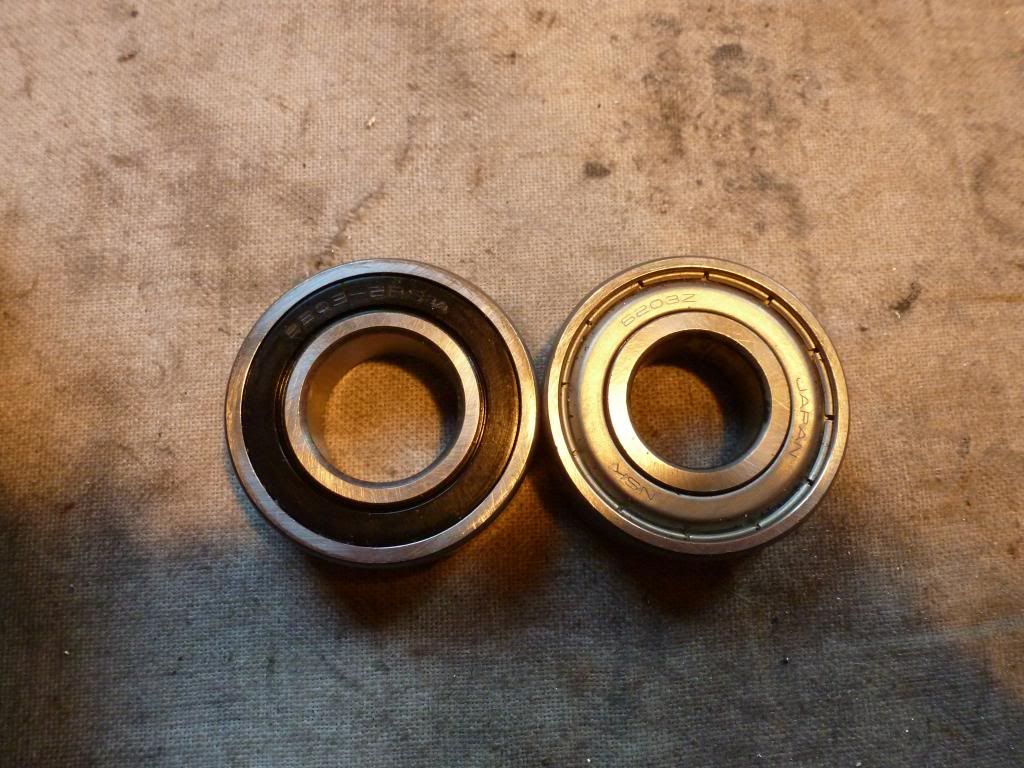

Here are some pics. I have also increased the jounals to 3/4" dia (19.05mm) up from 17mm and made it out of EN24T steel. You wont break this in a hurry! Simon wanted the thread size increasing and I have also made the spindle 16mm dia by 10mm across flats where it goes through the torque arms for added indestructability :-) at his request.

If your stuck for an Axle I could get more made, if there is demand I could make them in batches to get the cost down. This one made as a one off was £100 inc the new bearings posted.


Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
Ugrd   10 W

10 W
Posts: 75
Joined: Sep 19 2013 4:46pm
Location: Midwest United States (ND,MN)

Re: Crystalyte X5 spindles, who wants one?

Post by Ugrd » Feb 13 2014 2:28pm

Hey im semi-interested in getting one maybe although don't put me down for a quote just yet :P Although the price is a little high, but for the effort in manufacturing it yourself I can see why its at that. I have a Crystalyte 5403 and ive been pondering upgrading the phase wires to 10guage if possible and also just to have one on spare. The pictures look very nice and looks very well made.

Cheers,
Ugrd
10kw club, 55mph club

My bikes:
----------------
Shimano Mountaineer - 72v 12ah Lipo - Magic Pie 2 with 12fet Lyen - Decommissioned
KMX Typhoon Trike - 72v 12ah Lipo - Crystalyte 5403 with 24 fet Lyen - Ran-Over RIP
Genesis V2100 - 72v 12ah Lipo - Crystalyte 5403 with 24 fet Lyen - Current bike

cassschr1   10 kW

10 kW
Posts: 510
Joined: Aug 14 2009 11:57am
Location: LaCrosse, Wisconsin

Re: Crystalyte X5 axle, who wants one?

Post by cassschr1 » Feb 14 2014 10:31am

Tench, in your above post, it's still not clear to me if these are for 5300 series or the 5400 series. Tell me why no splines (knurling) in center of axle?
Whats the cost US dollars? Thanks

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 axle, who wants one?

Post by Tench » Feb 14 2014 2:48pm

Your quite right to call it knurling as it is not splines, the inner bore of the stator is smooth, I guess the axle is knurled so that the machined dimensions are less critical? the peaks of the knurling just squash as the axle is pressed in, which is quite easy when you have felt how soft the std axle material is!!
I don't have all the drawings, I cant tell you the difference between one axle or another, but if you sent me one to copy its no problem, it wont be knurled, it will be machined to be a press in fit with the keyway on the correct side so it can be used!
This is only the 3rd one I have made, the first for an HS3540 in aluminium :shock: for my project 2 below, then one in Titanium :lol: for the HT3525 I am building now and this one in EN24T which BigSi tells me is a new type X5, I suspect this will be the same as the new 40xx series as it had a 38mm stator of the same dia. The older X series where a few mm larger on the stator dia.
I will save drawings of each one I do.

So any body saying can you make me an axle for :?: motor the answer is yes if you send me the old one even if its broken and tell me how you want it and what material, then we can arrive at a cost.
Then one day I may have all the details and be able to supply to order, so if your really stuck and don't have a local solution to your broken axle then we can get you rolling again.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
alsmith   100 kW

100 kW
Posts: 1182
Joined: Dec 03 2010 7:25pm
Location: Northumberland, UK

Re: Crystalyte X5 axle, who wants one?

Post by alsmith » Feb 14 2014 3:10pm

cassschr1 wrote:Tench, in your above post, it's still not clear to me if these are for 5300 series or the 5400 series. Tell me why no splines (knurling) in center of axle?
Whats the cost US dollars? Thanks
That would be helpful, also which wheel. Some of us have front wheel drives.

User avatar
Drunkskunk   100 GW

100 GW
Posts: 7202
Joined: Apr 14 2007 11:37am
Location: Dallas, Texas. U.S.A.

Re: Crystalyte X5 axle, who wants one?

Post by Drunkskunk » Feb 14 2014 11:54pm

This could be interesting. I don't need one right now, but an upgrade to one for a 540X that used a larger nut so more surface area in the dropout would be very tempting.
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewto ... =6&t=38667

bigsi   10 W

10 W
Posts: 86
Joined: Jan 12 2014 5:33pm
Location: Northumberland uk.

Re: Crystalyte X5 axle, who wants one?

Post by bigsi » Feb 16 2014 5:02pm

Before simon got in touch I was quoted 180plus vat... This is a cracking deal...
specialized s-works enduro carbon running 18FET Lyen. crystalyte 5304v3 running 105v 15ah....
I build quick release custom batteries to any size and shape. Including custom installs.

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 axle, who wants one?

Post by Tench » Feb 16 2014 6:05pm

Hi Si, carrier is booked to collect your stator with new spindle fitted from me tomorrow (Monday) for a 24h delivery so you should have it back Tuesday.

Cheers Simon.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

User avatar
cal3thousand   1.21 GW

1.21 GW
Posts: 3606
Joined: Mar 26 2012 4:47pm
Location: California

Re: Crystalyte X5 axle, who wants one?

Post by cal3thousand » Feb 19 2014 6:47pm

Too bad your'e not making HT axles... I would take one
Get a Cycle Analyst and a Multimeter, you're still a noob if you don't have at least one of each.

Planning on posting questions or buying anything on this site? Put up your country (at minimum) on your profile. This is a worldwide forum and we haven't reached clairvoyance.

bigsi   10 W

10 W
Posts: 86
Joined: Jan 12 2014 5:33pm
Location: Northumberland uk.

Re: Crystalyte X5 axle, who wants one?

Post by bigsi » Feb 19 2014 6:58pm

Hi all. Received my new axle. Fantastic quality and far better than original. Great service. Price and axle. Thank you very much Simon. Regards....Simon haha
specialized s-works enduro carbon running 18FET Lyen. crystalyte 5304v3 running 105v 15ah....
I build quick release custom batteries to any size and shape. Including custom installs.

User avatar
trevc2   100 W

100 W
Posts: 195
Joined: Aug 28 2013 8:13pm
Location: Australia

Re: Crystalyte X5 axle, who wants one?

Post by trevc2 » Feb 20 2014 7:25am

Also interested in one for the HT3525 :)

Tench   100 kW

100 kW
Posts: 1033
Joined: Jul 13 2010 12:48pm
Location: Derby UK

Re: Crystalyte X5 axle, who wants one?

Post by Tench » Feb 20 2014 9:13am

cal3thousand wrote:Too bad your'e not making HT axles... I would take one
trevc2 wrote:Also interested in one for the HT3525 :)
I have made a few of the rear wheel HT/HS axles, I do have a drawing for these so could make some if there are takers?!

I can also offer the 3/4" bearing upgrade on these too. There will be a small amount of dremel work to do on the side covers to clear the larger dia journal that you would need to do yourself if I am just supplying the Axle/bearings.

PM me if your interested?

Simon.
Project one http://endless-sphere.com/forums/viewto ... ilit=tench
Project Two http://endless-sphere.com/forums/viewto ... =6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.

Post Reply
