jonescg's NEW electric racebike BUILD thread!

General Discussion about large electric scooters and motorcycles and other things with no pedals.
User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 22 2013 5:19am

Full-Throttle kindly produced some Gerbers for me of the main control board. Too many high voltage wires hanging around inside this box, too much potential for a short somewhere. So I figure this board will simplify things greatly.
Full Throttle Cont Brd 001.jpg
Full Throttle Cont Brd 001.jpg (165.71 KiB) Viewed 3194 times
Full Throttle Cont Brd 002.jpg
Full Throttle Cont Brd 002.jpg (207.78 KiB) Viewed 784 times
Full Throttle Cont Brd 003.jpg
Full Throttle Cont Brd 003.jpg (234.76 KiB) Viewed 3194 times
Now the whole lot goes together much more smoothly and clean. Just have to set the relay logic board up and it's done.

The resistors in the middle are the precharge. I was going to use four 2.2kR resistors in parallel, but I dropped the packet and the bastards broke in half! So now I have two 47kR and two 1kR resistors for about 490 ohms of precharge resistance. Gives a full precharge in 1 second. The high voltage precharge relay from Gigavac is soldered in nicely and no longer needs the jam nut. For voltage monitoring I'll be using the Cycle Analyst with a Vex connection from the voltage divider below. It offers a 1:140 division which should be about 5 V for full charge, and 3.9 V when flat.

Just need to devise some convenient plugs for the contactor LEDs and the 12 V supply.

Rodney64   1 MW

1 MW
Posts: 1851
Joined: Mar 30 2012 4:00am
Location: Perth Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by Rodney64 » Jun 22 2013 5:36am

Looking good Chris.

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 23 2013 5:36am

I finished the relay control board and mounted it inside the box with everything. It's not ready to screw the lid on just yet, but all of my logic checks out.

I currently have a 2.2 second delay for precharge. Precharge is actually over in 1 second with the current arrangement, but I think the extra delay is a good move.

http://www.youtube.com/watch?v=vmZHHUPm ... e=youtu.be

Just need to mount some slightly longer screws through the board to hold it to the battery box, put a decent waterproof plug together for the shunt and voltage divider and maybe run some optic fibre up to the dashboard for the contactor indicator lights.

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 28 2013 5:24am

Apart from fixing the top cover to the pack, it's ready for the cells!
Main control box done 001.jpg
Main control box done 001.jpg (185.01 KiB) Viewed 3074 times
I have installed the output leads to the controller, but I will need to install a water-proof, finger-proof socket on the output. Should make pulling the battery out a fairly simple affair.

Now, I will be placing a huge order for individual 40C LiPo cells. About 550 of them to account for duds. If anyone wants in, let me know in the next month or so and I can add them to the order!

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: jonescg's NEW electric racebike BUILD thread!

Post by Farfle » Jun 28 2013 6:24pm

What was the cost per cell on those guys?
Test Review Revise Repeat

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 28 2013 8:54pm

If I buy 500 or more from the factory I get them for about $9.60 each, but by the time they are shipped and I pay customs and taxes, they will be more like $14 each. Could be less, but with the Aussie Dollar dropping I don't think so.

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: jonescg's NEW electric racebike BUILD thread!

Post by Farfle » Jun 28 2013 10:14pm

Got it, so my 120, (hopefully 144 cell) pack would be around 2 grand maybe a touch more with shippin to the states.
Test Review Revise Repeat

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 28 2013 10:43pm

Well I'm buying my cells direct from the factory, and their minimum order is 500 cells. If you could rustle up enough interest in the States you could save on double-shipping, but 500 is a lot. It would cost maybe another $300 to send the cells by boat from Perth to the USA, but at that point I might as well solder up a pack for you. Which I'm happy to do :) Assembling the packs is the easy bit.

Lettuce know ;)

User avatar
sn0wchyld   1 MW

1 MW
Posts: 1767
Joined: Mar 18 2011 8:27pm
Location: South Aus.

Re: jonescg's NEW electric racebike BUILD thread!

Post by sn0wchyld » Jun 28 2013 11:11pm

jonescg wrote:Well I'm buying my cells direct from the factory, and their minimum order is 500 cells. If you could rustle up enough interest in the States you could save on double-shipping, but 500 is a lot. It would cost maybe another $300 to send the cells by boat from Perth to the USA, but at that point I might as well solder up a pack for you. Which I'm happy to do :) Assembling the packs is the easy bit.

Lettuce know ;)
its a shame the aussy store doesn't stay better stocked... ordering in sets of 53 would mean about $12.50 per cell, delivered... or groups of 165 would be about $12.40, maybe less. have you thought about splitting the shipment up so that each one individually is less than 1k? no customs then...

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 28 2013 11:36pm

It comes down to shipping. The unit price of the cell is nothing special, it's getting it here at an affordable price. They can declare the value so I pay less GST, but in the end it's the cost of packaging them up to DG standards and flying them over. I could wait for sea freight, but there's 7-8 weeks. Not that I will need my battery in a hurry though.

I would rather get a shitload of cells over in one hit rather than do multiple smaller orders, simply to avoid the hassle.

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jun 30 2013 5:01am

The pack, minus the cells, is done.
It is as weather-proof as I care to make it now. The foam strip does a pretty good job of keeping things dry. No, there is no active cooling going on, but the polycarb pack will slowly let heat out if it does get hot. I'm relying on the fact that I'm mostly just tickling the pack.

Hope to have the BMS panels ready to install in a months time.
Last edited by jonescg on Mar 25 2018 8:15pm, edited 1 time in total.

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jul 03 2013 8:20pm

More chassis pr0n :D

I think I will get the powdercoating done here in Perth since I will no doubt need to do stuff to the frame for the tank cover to fit.
The inverter mock-up fits nicely:
Solid subframe:
Nearly ready!
Last edited by jonescg on Mar 25 2018 8:18pm, edited 1 time in total.

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jul 07 2013 4:46am

Finished the battery charger monitoring box. Basically it's a pair of volt meters and amp meters for both half packs, and these are powered by the battery being charged courtesy of a pair of Myrra power supplies (thanks Heath!). I will also need to set the charge enable leads from the battery chargers up so the BMS will turn them off if a cell goes high. I can't really do this till I have a working BMS, and this relies on having a battery! I can mount these on a panel which can sit flat on the floor where everyone can kick it, or upright so it can fall over more easily.

How bright are these displays eh?
Charge monitor box 001.jpg
Charge monitor box 001.jpg (144.68 KiB) Viewed 780 times
Charge monitor box 002.jpg
Charge monitor box 002.jpg (181.79 KiB) Viewed 780 times
Charge monitor box 003.jpg
Charge monitor box 003.jpg (127.15 KiB) Viewed 2821 times
Charge monitor box 004.jpg
Charge monitor box 004.jpg (196.45 KiB) Viewed 2821 times
Charge monitor box 005.jpg
Charge monitor box 005.jpg (170.29 KiB) Viewed 2821 times

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jul 11 2013 7:09am

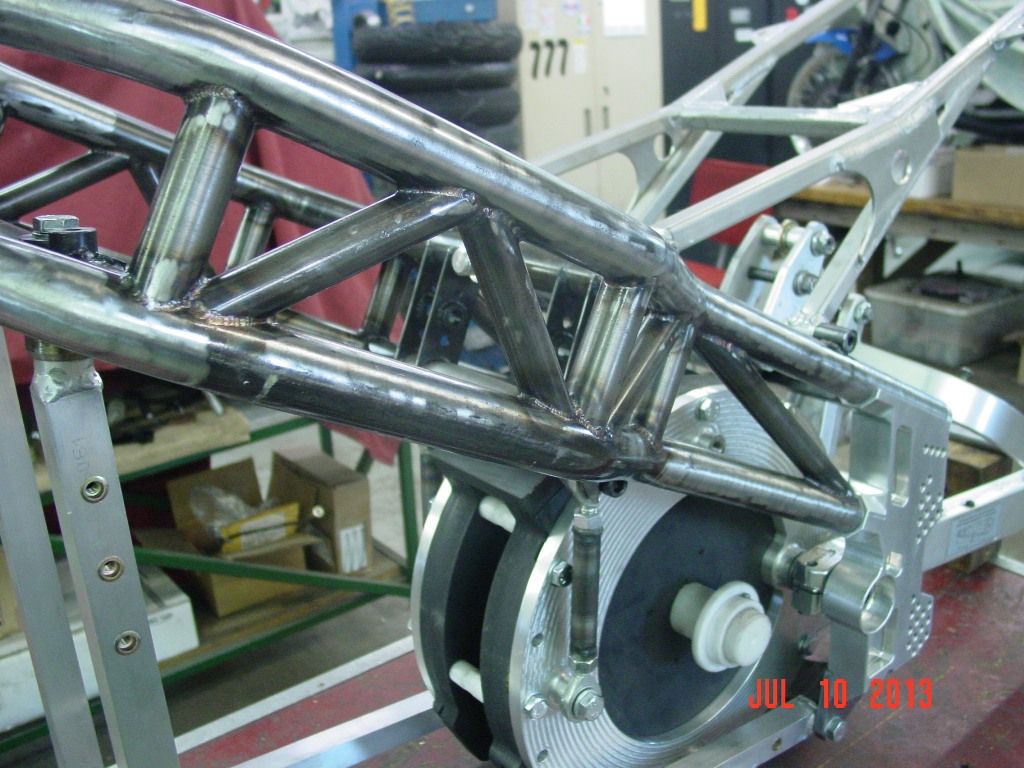

Some final pics before it all gets crated up.

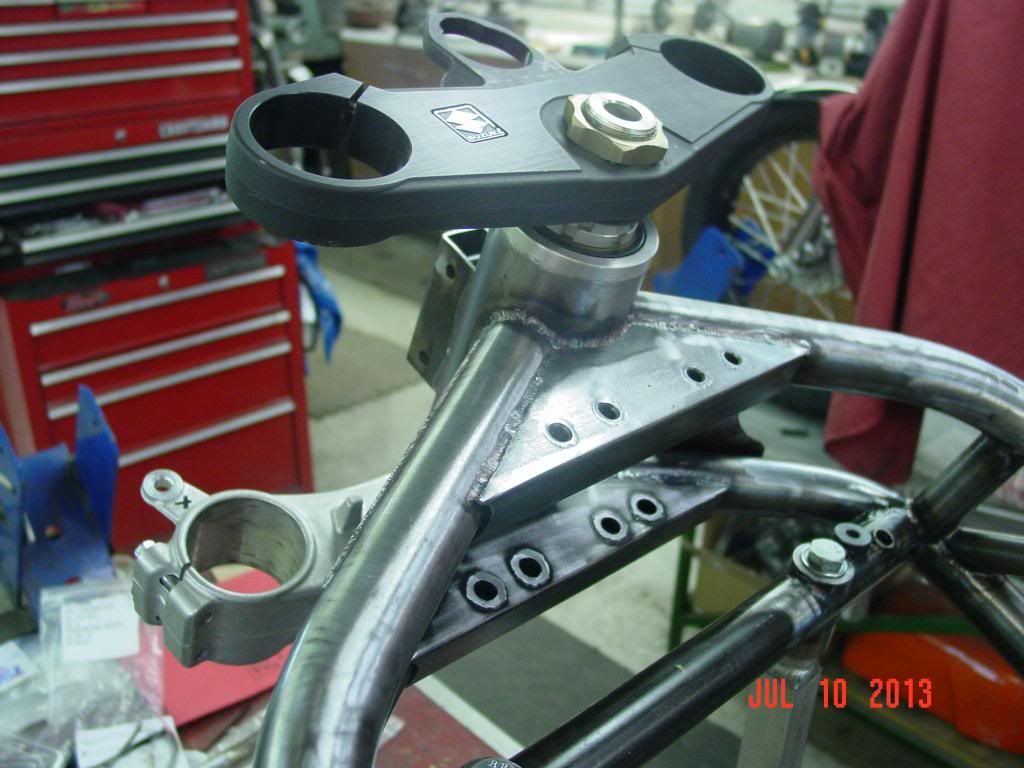

The headstem bearing ODs were based on a GSXR, so I ended up buying an '08 Gixxer front end in the USA and had them throw it in the box. They tried it with an older triple clamp and it all fits good. Still need to source some brakes and levers.

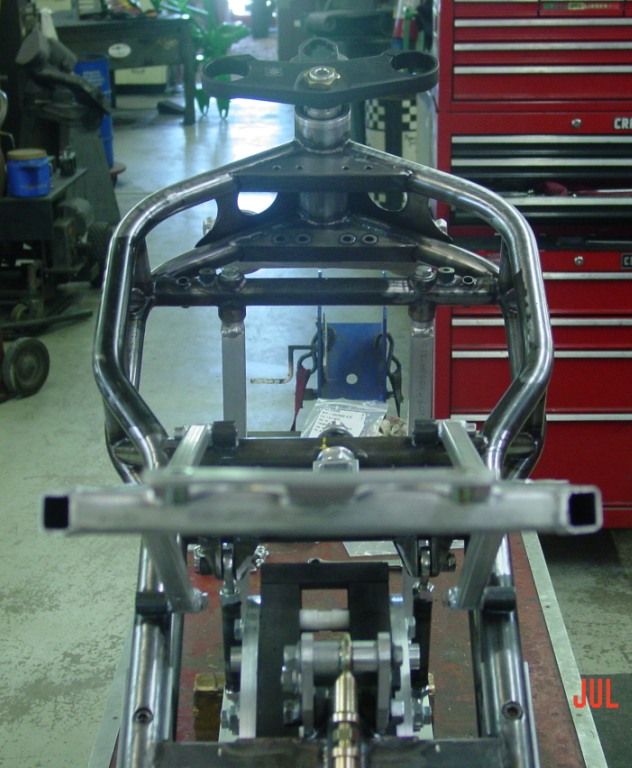

Bit of a fatty, but no fatter than a typical non-Honda Japanese litre bike.

Looking nice and shiny :)

Got the holes machined out to 20 mm, which is still probably too small for GSXR rear wheel. Oh well. I should have been more specific than "about 20-25 mm". I can still make it work with spacers.

Randy is still working on the output shaft bearing and support. Still quite a lot of support needed for this much torque. And once this is paid for, I will be almost completely broke. Time to get that crowd funding target set up...

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jul 12 2013 9:00pm

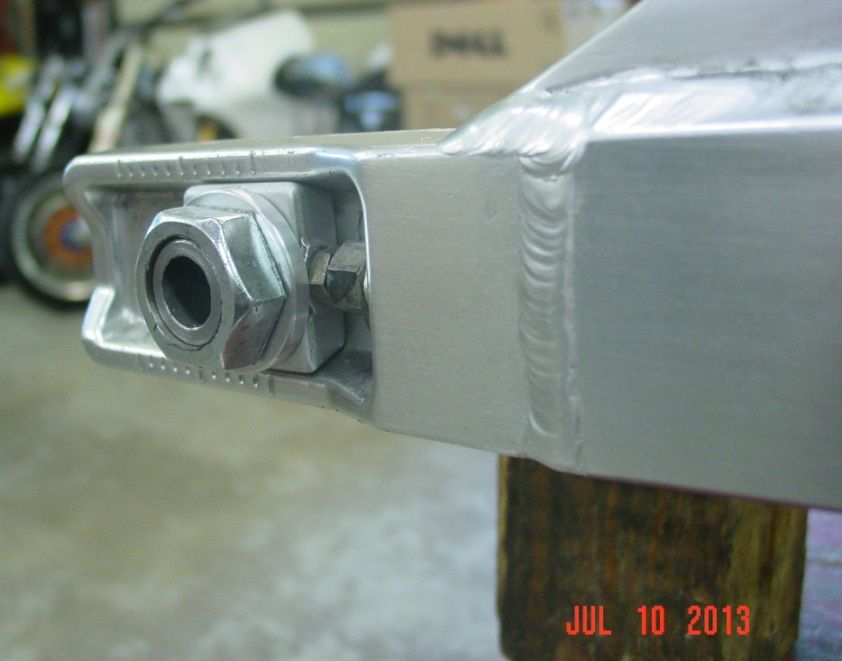

Some last pics to show you before it gets sent off. I got Randy to build an output shaft bearing support, as the chain run would foul the tyre unless the motor was shuffled further to the left. We couldn't go too far as the motor would end up touching the inside of the swingarm bridge, so it meant mounting the drive sprocket some way out. In order to support the shaft, the new bearing goes to the inside of the drive sprocket, leaving full access if you needed to remove the chain.
He also added some attachment points for the all important sharks fin sprocket guard, and some spools for the track stand.
Finally the bump-stops for the steering. Don't want to chip the paint now!



And that, I believe, is that! It's done. I will get the shipping bill in a week or so, and I can tell you the complete cost of the custom frame construction. It wasn't cheap, but I would have spent the same money converting an existing bike and have to compromise more. Can't wait to get a job and start finishing this machine!
Last edited by jonescg on Mar 25 2018 8:22pm, edited 1 time in total.

inh   1 mW

1 mW
Posts: 11
Joined: Jun 22 2012 2:30am

Re: jonescg's NEW electric racebike BUILD thread!

Post by inh » Jul 13 2013 1:40am

Love this build, and I'm extra excited to see how it goes because I have a CRX to electrify as well :D

User avatar
Arlo1   100 GW

100 GW
Posts: 8375
Joined: Apr 26 2009 10:36pm
Location: Nanaimo
Contact:

Re: jonescg's NEW electric racebike BUILD thread!

Post by Arlo1 » Jul 13 2013 9:28am

inh wrote:Love this build, and I'm extra excited to see how it goes because I have a CRX to electrify as well :D
We will have to start a club ;)
Does your project need a high performance motor drive, battery charger or other power electronics developed? Let's talk!
www.powerdesigns.ca
Leaf motor controller build. http://endless-sphere.com/forums/viewto ... 27#p963227
YSR build http://www.youtube.com/watch?v=BRo8r5g4NBg
Never above 4.2v never below 2.7v EVER!!!
Support me on Patreon. https://www.patreon.com/user/posts?u=6842045
http://www.undergroundelectrics.ca/

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jul 20 2013 6:41am

Well another milestone made. The invoice has been paid and the bike has been packed up. All up it came to a bit over US$8000. This is including the ZX-10 fairings, custom motor plates, custom linkages, custom subframe and custom battery cradle. I paid an additional $750 for some forks and triples, as well as the $500 alloy swing arm. Hopefully we can work out a cheap and fast shipping method. Sea freight from LA to Sydney might take about 6 weeks, and Sydney to Perth another 2 weeks.

For the curious, Evo-GKN have informed me that they are willing to accept small orders of motors provided there is a business case for continued orders into the future. So for any budding open-wheel racers, or Evo-motorcycle builders out there, all is not lost. I'm guessing the economy is so bad in the UK they are happy to sell to anyone again :)

And more exciting news - I had a job interview with a big company who does Subsea ROV work. It went really well, but I will have to wait another month or two to know the final word. 4 weeks at sea piloting tethered subs and 4 weeks off. Might be rough, but for a few years it would make for some serious cashflow. Fingers crossed!

Rodney64   1 MW

1 MW
Posts: 1851
Joined: Mar 30 2012 4:00am
Location: Perth Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by Rodney64 » Jul 20 2013 7:38am

Good to here about the job interview Chris and exiting times ahead for your bike.

Tinto   100 W

100 W
Posts: 128
Joined: Mar 02 2012 8:26am
Location: Perth, Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by Tinto » Jul 20 2013 9:16am

That price seems great (even cheap) considering it is bespoke. Thanks for the insight.

Hope all goes well for you with the subsea role.
.: Giant AC-E GNG :: 48V :.

User avatar
thewmatusmoloki   10 kW

10 kW
Posts: 653
Joined: Sep 16 2008 9:07am
Location: Gold Coast Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by thewmatusmoloki » Jul 20 2013 12:03pm

awesome

wedge   1 mW

1 mW
Posts: 14
Joined: Jan 06 2012 10:49am

Re: jonescg's NEW electric racebike BUILD thread!

Post by wedge » Jul 28 2013 7:28am

Where are you going to put the radiator and how big will it be? There is no room behind the front wheel and not much above it.

User avatar
jonescg   1.21 GW

1.21 GW
Posts: 3780
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: jonescg's NEW electric racebike BUILD thread!

Post by jonescg » Jul 28 2013 8:42am

I've generally been planning on putting it in front of the battery cradle, up as high as possible. The radiator is only about 300 mm wide and 200 mm tall, and barely 30 mm thick. If it doesn't fit there I'll try to fit it underneath the battery tray or something. I'll find a way :)

wedge   1 mW

1 mW
Posts: 14
Joined: Jan 06 2012 10:49am

Re: jonescg's NEW electric racebike BUILD thread!

Post by wedge » Jul 28 2013 10:16am

The total volume of your radiator is 1.8 litres. I estimate it will hold about half that amount of water, say 1 litre. The coolant flow rate for the AFM-140 must be greater than 8 litres per minute. I'm not sure what your controller requires but if we assume it is at least 4 litres per minute you will need a total flow rate of at least 12 l/min. I don't think your radiator is big enough.

A lot of people think an ICE needs such a big radiator because they are very inefficient. It is true that they are inefficient, but their radiator is actually very small compared to the amount of heat they produce. The water cooling system of an ICE engine only dissipates about 20% (my estimate) of the waste heat, the majority of the waste heat goes straight out the exhaust. An EV creates much less waste heat, but nearly all of it has to be dissipated by the cooling system.

If you find you need more cooling you could add a second radiator underneath the seat, Britten V1000 style.

Mike Edwards   10 mW

10 mW
Posts: 29
Joined: Jun 23 2012 8:37am

Re: jonescg's NEW electric racebike BUILD thread!

Post by Mike Edwards » Jul 30 2013 5:50pm

wedge wrote:If you find you need more cooling you could add a second radiator underneath the seat, Britten V1000 style.
Or just copy the Mission R with the radiator horizontal directly under the battery pack.
